General Overview

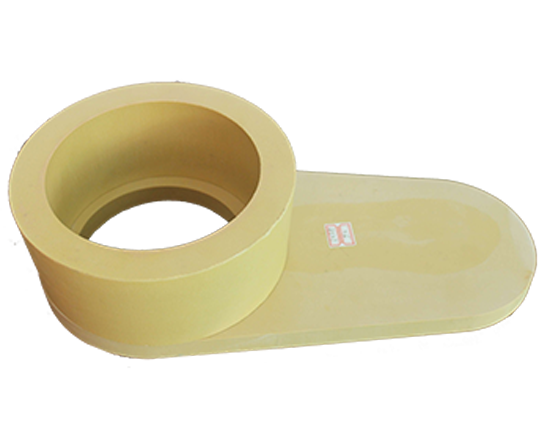

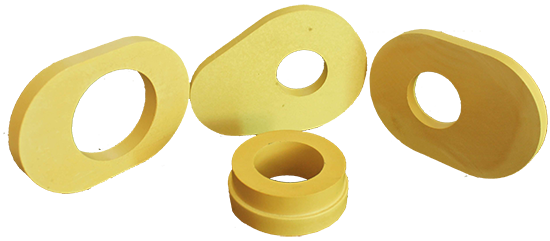

Zirconia Slide Plates are used to improve the lifetime of traditional slide gate plates for some steel plants. Body of slide plate material is used Al2O3-ZrO2-C, and for the insert body, pure zirconia plate is used. Both of them are assembled before using. It can be applied for 120-300 tons different type of converters; continuously can be used for 15-18 times.
Advantages
-
- Excellent crushing and erosion resistance
- Perfect thermal shock stability
- Increase the usage lifetime of slide gate
The range of chemical and physical properties is shown as below:
ZrO2 (%) Al2O3 (%) SiO2 (%) MgO (%) Fe2O3 (%) TiO2 (%) B.Density (g/cm3) >95 <0.2 <0.4 <2.9 <0.1 <0.1 5.35-5.45 95-96 <0.2 <0.4 <2.9 <0.1 <0.1 5.45-5.60
